CNC Aluminum Hopup Chamber M4A - PRO - Red

M4A Hop Up Group - PRO Maxx Model.
In aluminium, with CNC machining.
Transversal adjustment ring, with maximum precision.
Predisposition for LED illuminator.
For Marui M4 / M16 series (including G&G, KRYTAC, excluding KWA).

Characteristics:
The Hop Up was designed with BB Latching System to avoid dropping BBs after removing the magazine.

The locking system can also be opened manually to release the pellets.

Use a pellet nozzle with a length of 21.00 to 21.25 mm.

SPECIFICATIONS:
Total length: 51.65mm
Total height: 37.75 mm
Input adapter outer diameter (to fit gearbox): 11mm
Hub Outer Diameter (to fit outer barrel): 12mm
Internal diameter of the hub (to fit the nozzle): 8 mm
External diameter of the power supply (to fit the charger): 8.85mm
Feeder Length (to fit the charger): 6mm
Material: Aluminum 6061

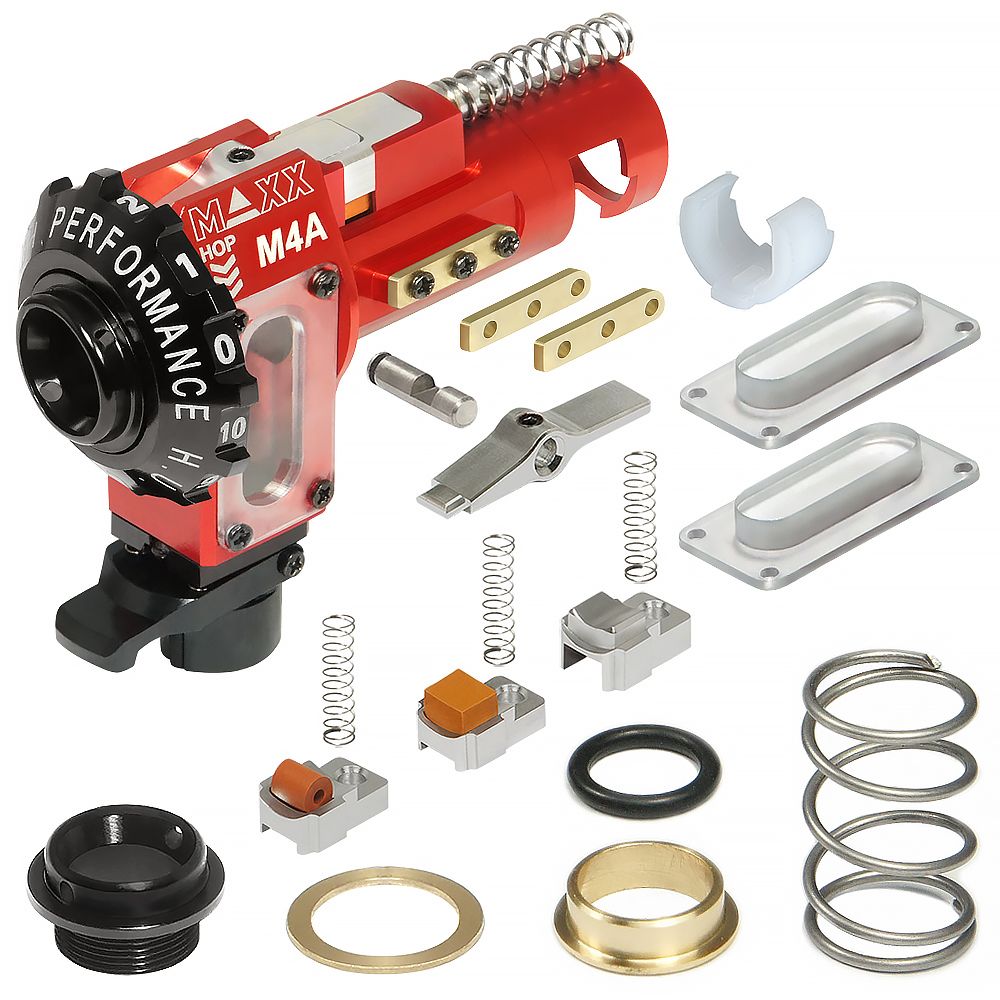

INCLUDED IN THE PACKAGE:
1 x CNC Aluminum Hopup Chamber M4A Pro (with BB Latching System) unit
2 x CNC Acrylic Side Cover
2 x CNC Brass 2.5mm Side Wing
1 x CNC Steel Pivot Pin
1 x CNC Aluminum Hopup Lever
1 x CNC Aluminum Soft Round Nub
1 x CNC Aluminum Soft Flat Nub (4mm)
1 x CNC Aluminum Hard Concave Nub (4mm)
3 x Steel Nub Spring
1 x CNC Steel Spring Guide
1 x Steel Upper Compression Spring
1 x Steel Center Compression Spring
1 x CNC Delrin Locking C-Clip
1 x CNC Brass Barrel Spacer
1 x Brass Barrel Spacer Holder Oring
1 x CNC Aluminum Rotary Dial Knob
1 x CNC Aluminum Inlet Adapter (OD11mm)
1 x CNC Brass Inlet Spacer
