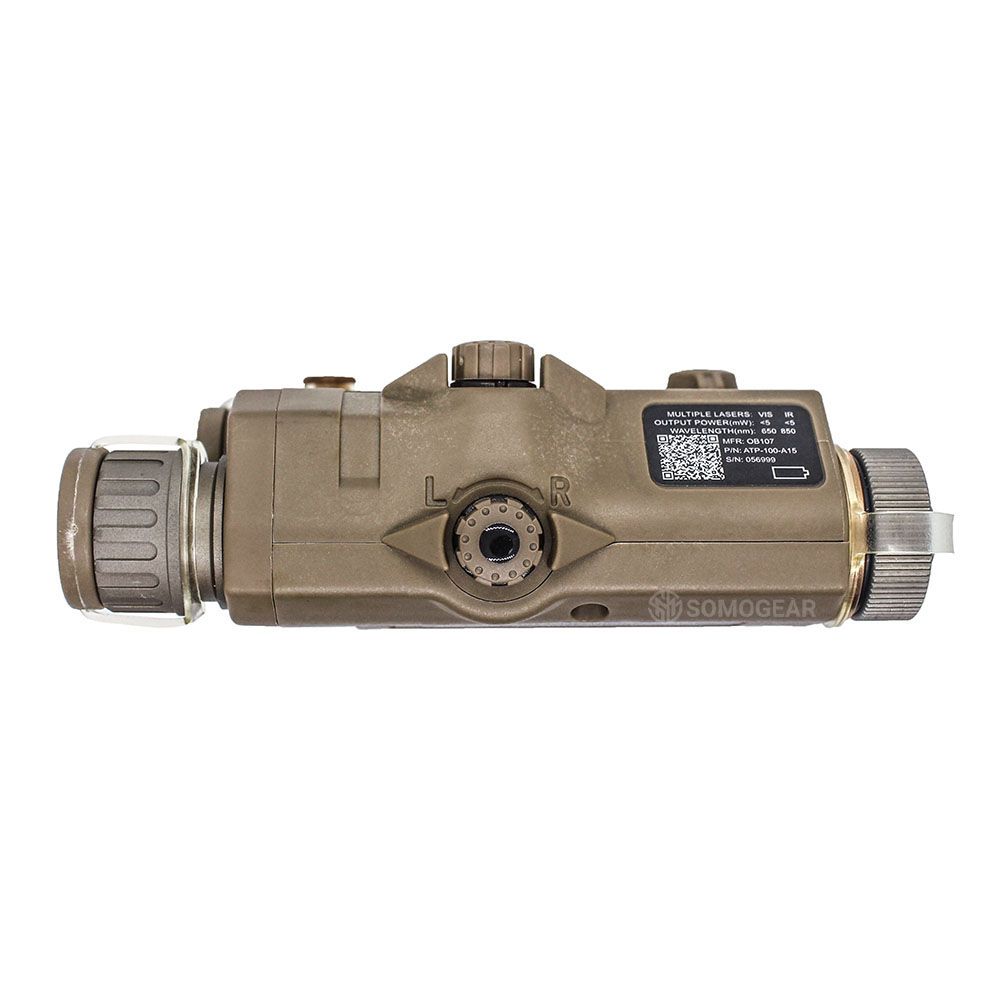

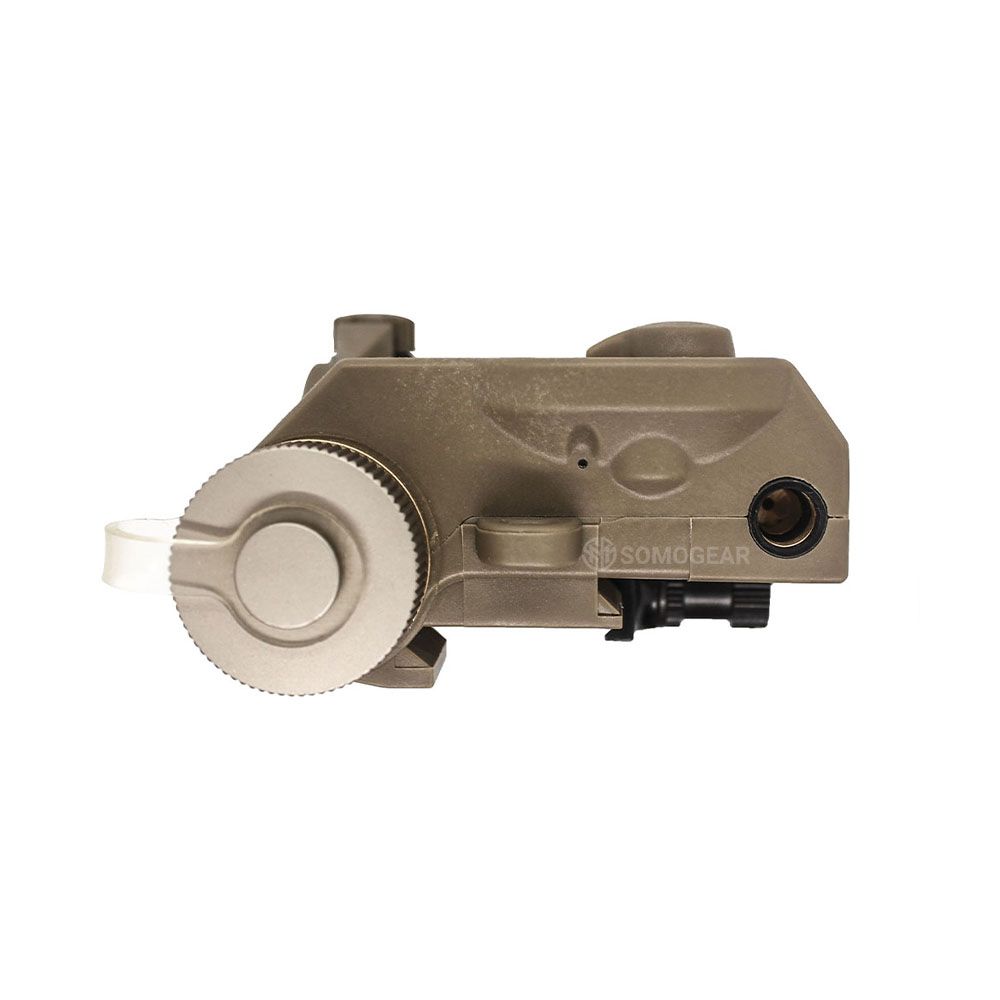

SomoGear PEQ-15 IR Laser Illuminator UHP Full Power with PCB Potting - Black/Red MY23

In addition to momentary and continuous operation modes, the IR illuminator can be programmed to operate in pulsed modes at 1, 2, 4, 8 pulses per second.

To enter programming mode, the mode dial must be rotated to the desired peq frequency within 5 seconds of pressing the FIRE button.

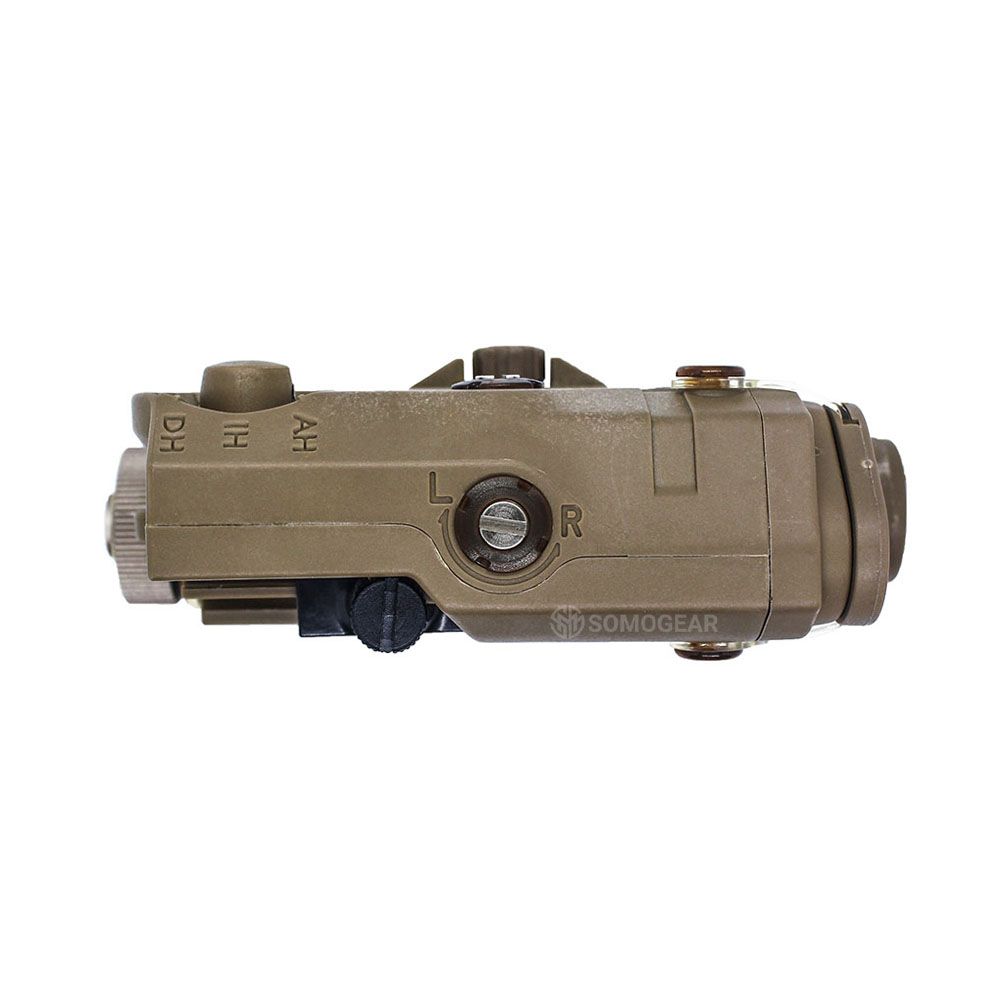

With the mode dial rotated to the P (program) position, press and hold the FIRE button, the orange indicator lights. Rotate the mode dial to the IR position that corresponds to the desired peq frequency as shown in the table below.

Release the FIRE button, the orange indicator flashes 2 times and the peq frequency will be programmed, the set peq frequency will remain until programmed differently or cancelled.

How to cancel peq frequency?

Set the frequency to 0 pulses per second

https://www.youtube.com/watch?v=VPj6VYRFM5w

The SomoGear AN/PEQ-15 Aiming Laser IR Illuminator (ATPIAL) is designed for use with night vision devices.

The integration of aligned VIS and IR targeting lasers, also combined with IR illuminator, adjustable and focusable beam.

It is small, light, easy to use, setting the new standard in the field of airsoft.

SomoGear does its best to cater to major airsoft clubs and airsoft players.

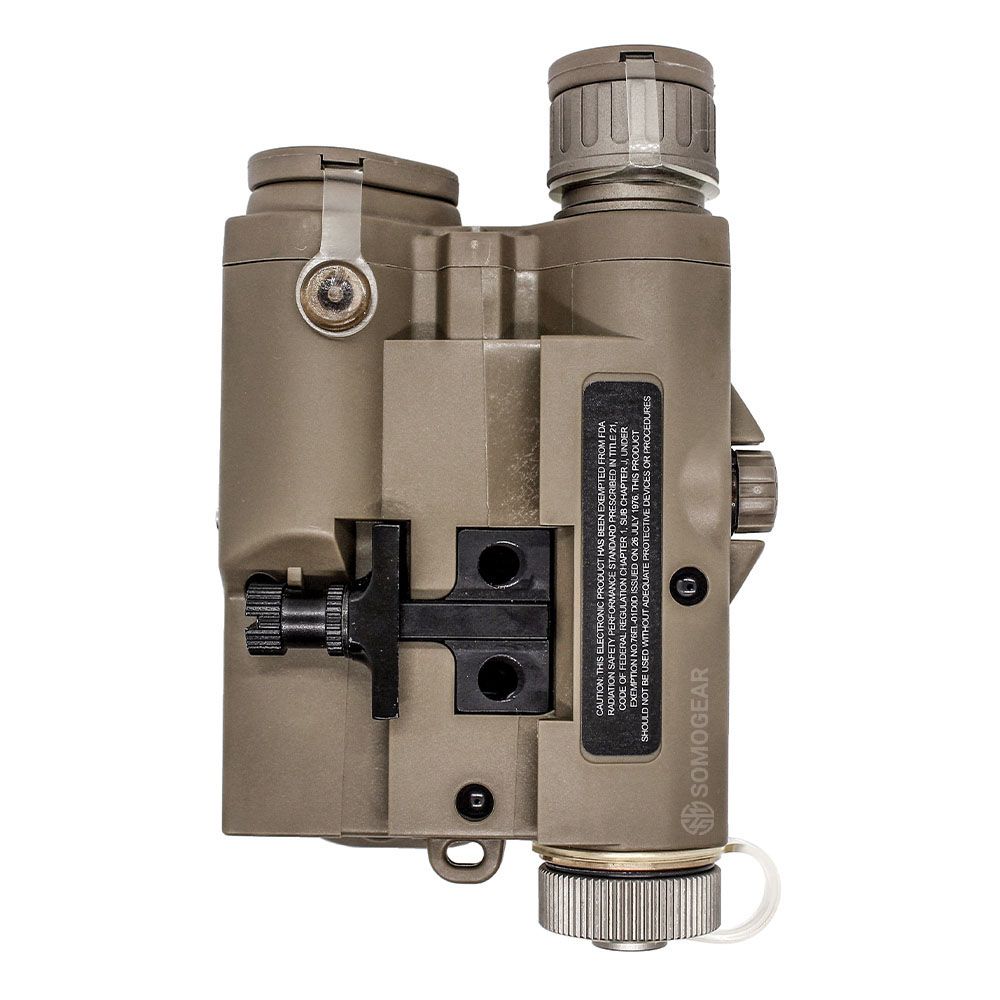

Brand: SOMOGEAR Suitable for MIL-STD-1913 picatinny rail

Durable polyamide material

Compatible with the original mil-spec plug Zero-pointing laser, with clicking sounds

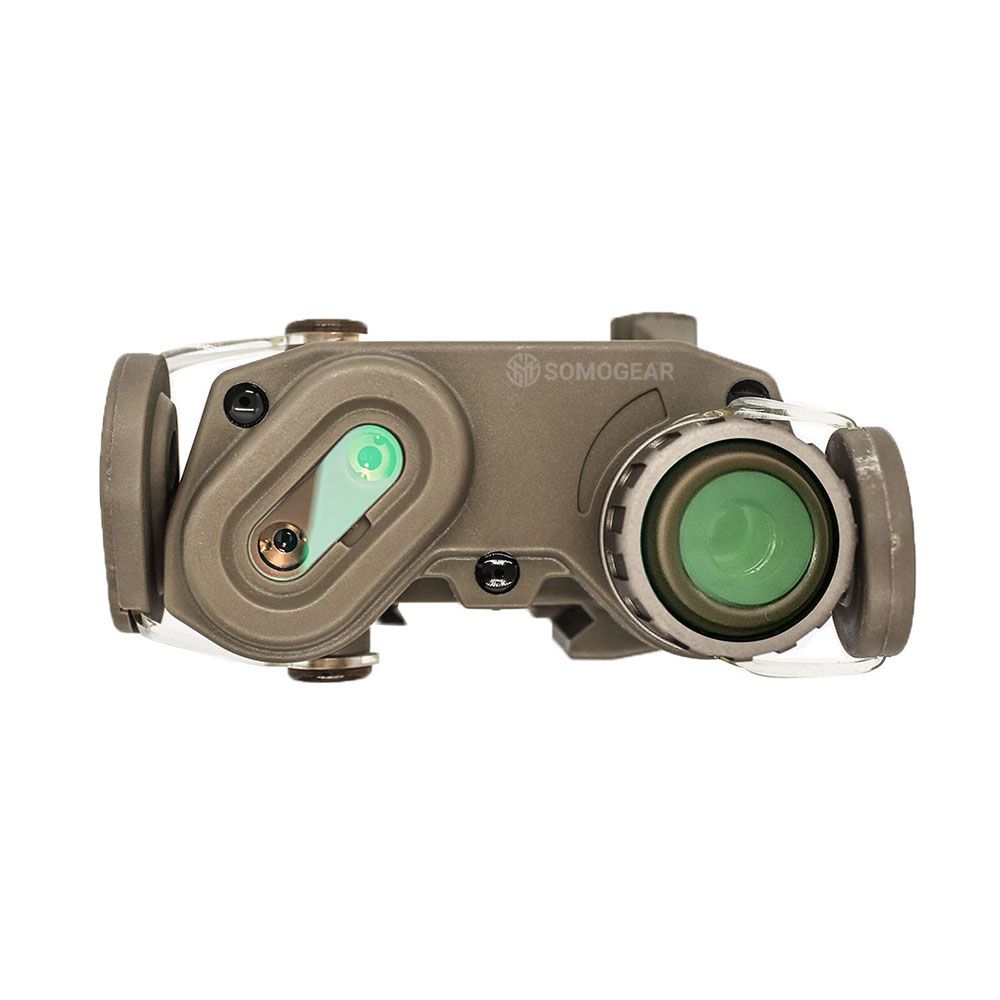

Focusable and adjustable IR illuminator

Programming function Co-aligned VIS and IR laser aiming (at 30 meters distance they are less than 10 cm from each other)

100% compatible for all generations of night vision goggles

For airsoft use only

TECHNICAL SPECIFICATIONS

Dimensions: 4.6 inches long x 2.7 inches wide x 1.6 inches high

Weight: 6.1 oz (172 g). without battery

Battery: 3V CR123A (not included)

Battery Life: >6 hours (in all modes)

Aim visible laser Low output power: 4.9mW

High output power: 20mW IR targeting laser

Low Output Power: 0.9mW

High output power: 20mW

IR Illuminator Low Output Power: 4.9mW

High output power: 60mW

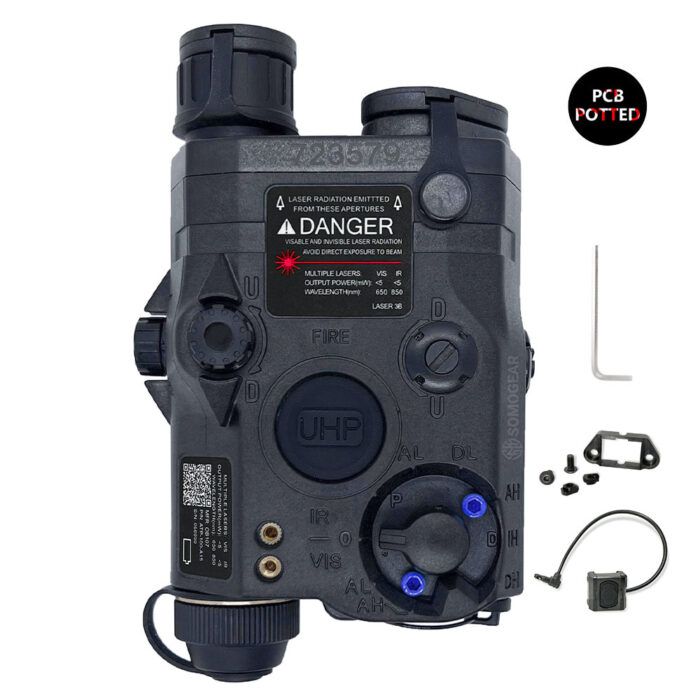

“Potting” is typically done directly into a plastic or metal housing that is designed to hold a PCB and allows access to properly dispense and degas the mixture through the pour, resulting in superior protection. PCB potting services provide protection from physical stress, thermal shock, chemical exposure, heat and humidity.
